200
Series:
Polycarbonate base |
|
|
|
|
| |
|
|
|
|
|
Models 202, 205 &
the new 260 feature
clear, polycarbonate
reservoir & base

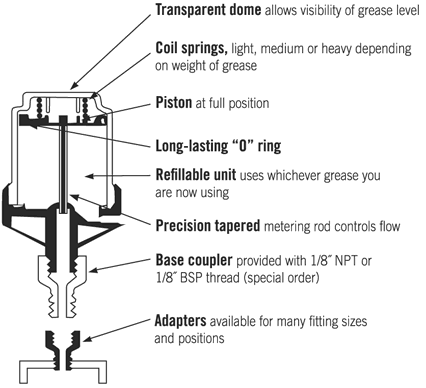

allows for visual
inspection of the
unit's internal
workings. Assembled
with medium springs;
3 additional light &
heavy springs are
included in each box
of 10. Extra heavy
springs (orange) are
available for apps
requiring the use of
an extension or for
high pressure
flushing apps. Model
260 is individually
boxed with 2
additional springs (heavy
& light). |
|
|
|
|
| |
|
|
|
|
|
Specifications |
|
|
|
|
|
Polycarbonate domes
& bases. Thread size
is 1/8" N.P.T.
Operating temp.
range: -10 degrees F
to +250 degrees F
(-23 degrees C to
+121 degrees C) |
|
|
|
|
| |
|
|
|
|
Model # |
Diameter |
Height |
Capacity |
|
|
|
|
202 |
1
3/4" (44.5mm) |
3
5/8" (92.1mm) |
1oz
(28.3g) |
|
|
|
| |
|
| |
|
|
|
|
|
|
|
500
Series: Corrosion
resistant |
 |
|
|
|
metal
base |
|
|
|
Models 502, 505 &
560 are
nickel-chrome,
double plated for
apps where corrosive
resistance is
required; such as in
chemical & food
processing apps.
Units are assembled
with medium springs;
3 additional light &
heavy springs are
included in each box
of 10. An extra
heavy spring (orange)
is available for
apps requiring the
use of an extension
or for higher
pressure flushing
applications. Model
560 is individually
boxed with 2 springs;
heavy and light. The
piston seal ring in
the 500 series is
fabricated from
chemical resistant
Viton. |
|
|
| |
|
|
|
|
Specifications |
|
|
|
|
Thread size is 1/8"
N.P.T. Operating
temp range: -10
degrees F to +250
degrees F (-23
degrees C to +121
degrees C) |
|
|
|
| |
|
|
|
|
Model # |
Diameter |
Height |
Capacity |
|
|
|
|
505 |
2
3/8" (60.3mm) |
4
5/8" (117.5mm) |
2oz
(56.7g) |
|
|
|
|
560 |
3"
(75mm) |
6"
(152.4mm) |
6oz
(170.1g) |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
Model
704: High
temperature metal
base |
 |
|
|
| |
|
|
|
LubeSite Model 704
allows precise
dispensing of grease
to a bearing in
ambient temperatures
up to 450 degrees F
(230 deg. C). It's
ideal for
applications in
steel mills,
foundries, lumber
drying kilns, glass
plants, nuclear
environments, and
metal heat-treating
facilities. |
|
|
| |
|
|
|
Because the 704
permits longer
periods between
greasing, there is
no need to expose
your workers to
equipment operating
at high temperatures.
The refillable,
transparent
reservoir permits a
visual inspection of
grease level from a
safe distance. This
feature is
especially important
in high temperature
applications. Thread
size is 1/8" N.P.T. |
|
|
| |
|
|
|
|
Specifications |
|
|
|
|
The
Model 704 has a
tempered
borosilicate, glass
dome with a
stainless steel cap.
Base is lightweight,
anodized aluminum. |
|
|
|
| |
|
|
|
|
Model # |
Diameter |
Height |
Capacity |
|
|
|
|
704 |
3
1/4" (82.5mm) |
7
1/8" (181mm) |
4 oz.
(113.4g) |
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
